Telecom Rectifier Systems Flatpack2 48V/24kW

  • 1
  • 2
  • 3

Brand Name : Eltek

Model Number : Flatpack2 48V/24kW

Certification : CE, UL

Place of Origin : CN

MOQ : 1 set

Price : 1800 USD / 3500 USD

Payment Terms : L/C, T/T

Supply Ability : 500 sets per month

Delivery Time : 8-10 weeks

Packaging Details : Carton pacaked

Brand : Eltek

Input AC : Max 305V

DC output current : 500A

DC output voltgae : 48Vdc

Mac power capacity : 24KW

Rectifeirs : Flatpack2 48/2000HE /Flatpack2 48/3000HE

Rectifeir Part No. : 241115.105

Controller : Smartpack2 Touch or Smartpack Panel

System dimension : 19 x 14,9 x 12,2 "inch

Height : 4U

Weight : less than 15 kg

Contact Now

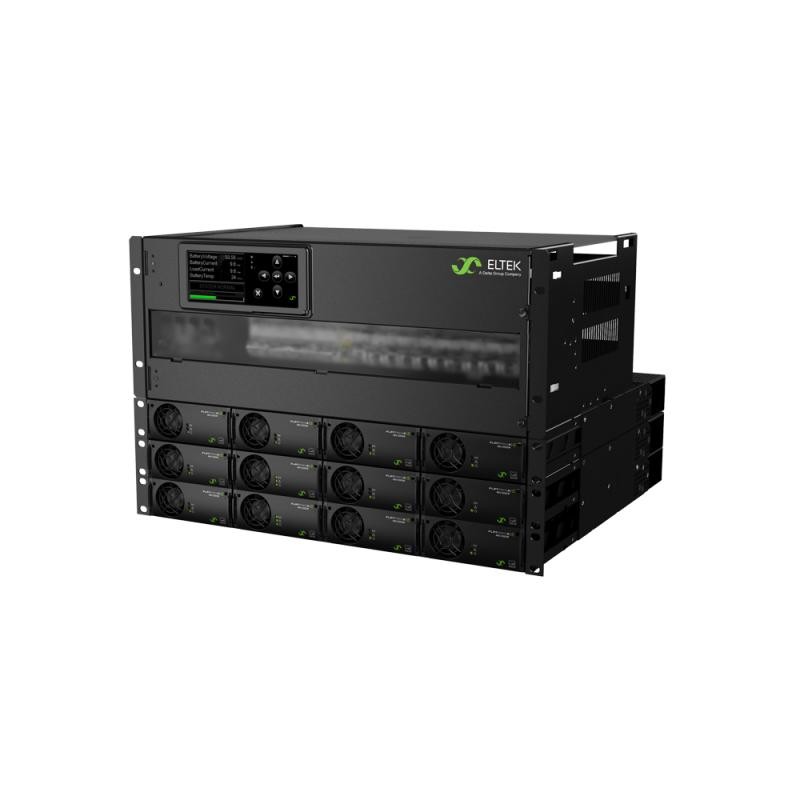

Eltek High efficiency Flatpack2 48V 500A Powercore 24KW capacity telecom Integrated system



Telecom Rectifier Systems Flatpack2 48V/24kW

Flatpack2 Power Core integrated Power System is versatile and powerful solution for any application. The combination of high efficiency, power density and reliability makes the Flatpack2 a product family that truly stands out and provides unparalleled network availability.



The versatility of the Flatpack2 rectifier in combination with advanced control and monitoring means that it can be used in a wide variety of DC telecom applications, both for fixed grid and alternative energy across the globe.



The 4U distribution is designed to meet the demand for compact and flexible DC

power solutions. It is based on building blocks and has a variety of configurations

depending on power, controller, battery section and load section. Pluggable battery breakers and DIN mounted load breakers ensures easy configurability as well as “in field” replacement. The power system has two controller options, Smartpack2 or Smartpack S which both has all the functionality required in present and future applications.



Techinical Data:



Brand Eltek
Product Name  -48Vdc integrated Power Systems (PowerCore)
Power Module  Flatpack2 48/2000HE or Flatpack2 48/3000HE
Controller  Smartpack2 Touch or Smartpack S panel
Input data
Voltgae Range  85-300Vac
Frequency  45-66Hz
Connection  Terminals



Mains configuraiton

230VAC Single phase;230VAC 3 phase (Δ);230/400VAC 3 phase (Y)
DC output
Max current  500A ( depends on the rectifeirs matched )
Voltgae  -48Vdc
Power Capacity  24KW
Battery Distribuiton
Breaker postions  up to 8 postions
Breaker rating  up to 250A
LVBD  Yes
DC load distribution
Breaker positions  up to 20 postions
Breaker rating  up to 125A
Others
Operating temperature

-40 - 70 °C
Dimension

482 x 380 x 311 mm
Weight  ＜ 15kg





Telecom Rectifier Systems Flatpack2 48V/24kW

Telecom Rectifier Systems Flatpack2 48V/24kW
