Delta UPS Ultron Family HPH Gen.2 Series Three Phase 20KVA -40KVA HPH-20K HPH-30K HPH-40K Online UPS
Delta UPS Ultron Family HPH Gen.2 Series Three Phase 20KVA -40KVA HPH-20K HPH-30K
HPH-40K Online UPS

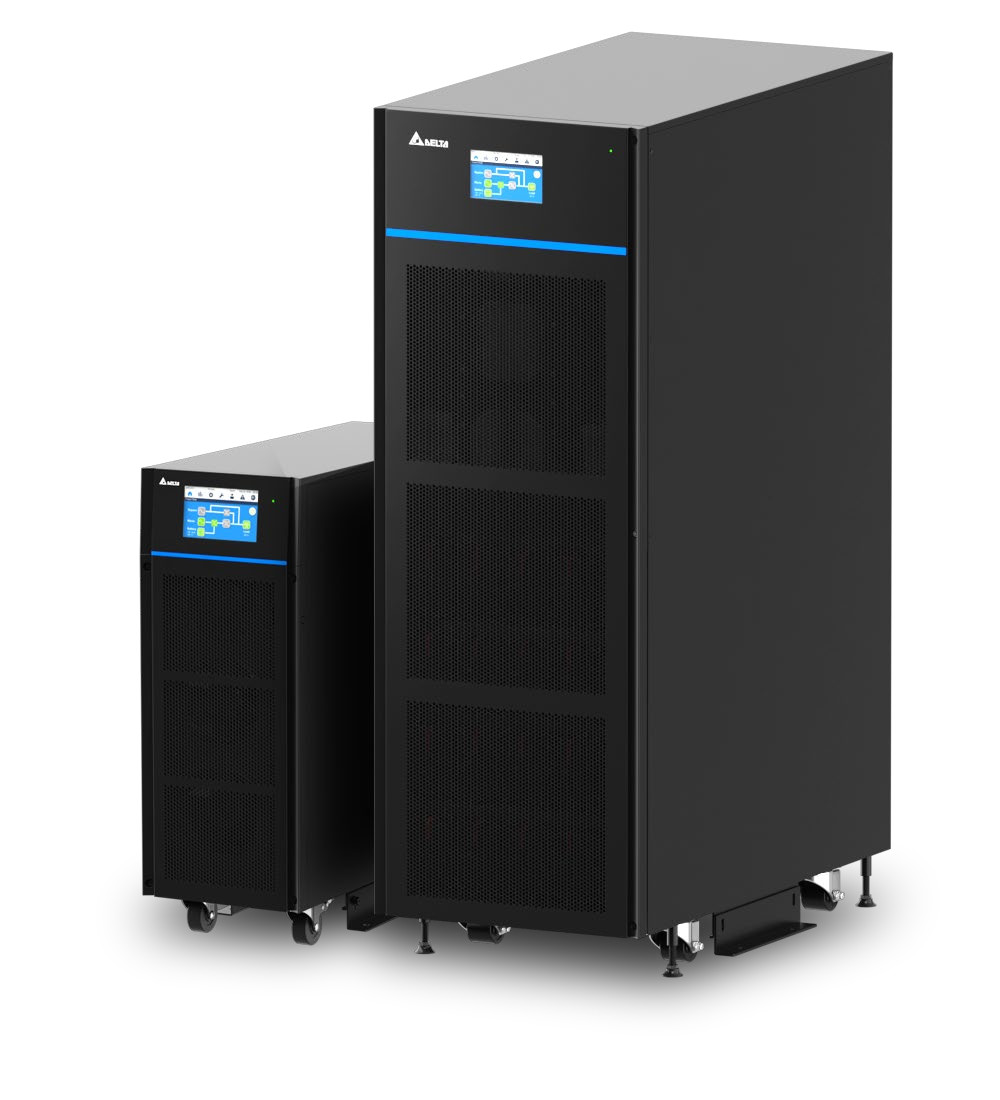

HPH Gen.2 Series, Three Phase, 20-40kVA
Combines reliable protection, cost-effective power, compact footprint and high- level performance
The latest HPH Gen.2 20-40kVA UPS offers a compact footprint with full rated output PF at 40 degree to optimize the UPS sizing. The 0.99 input PF and iTHD<2% ensure maximum upstream source compatibility. Low total cost of ownership is achieved by >96% efficiency, energy recycle mode, wider battery quantity configuration and inbuilt 15A charger. In addition, it provides a user-friendly interface touch panel, manual protection devices and caster wheels for easy deployment, installation and operation. All these features provide the ideal solution for various small and medium-sized data centers and critical power backups.
Options
• Battery temperature compensation cable
• Dust filter
• IP42 kit for long backup model
• EPO button kit
• SNMP IPv6 card
• Modbus card
• Relay I/O card
Tech Specification:
| Model | | HPH-20K HPH-30K HPH-40K HPH-20KB/HPH-20KB-N* HPH-30KB/HPH-30KB-N* HPH-40KB/HPH-40KB-N* |
| Power Rating | kVA / kW | 20 30 40 |
| Input | Nominal Voltage | 220/380Vac, 230/400Vac, 240/415Vac (3-phase, 4-wire + G) |
| | Voltage Range | 305~478Vac (full load); 228~478Vac (70% load) |
| | Current Harmonic Distortion** | ≤ 2.5% ≤ 2% ≤ 2% |
| | Power Factor | > 0.99 |
| | Frequency Range | 40~70Hz |
| Output | Voltage | 220/380Vac, 230/400Vac, 240/415Vac (3-phase, 4-wire + G) |
| | Voltage Harmonic Distortion | ≤ 1.5% (linear load); ≤ 4% (non-linear load) |
| | Voltage Regulation | ±1% (static) |
| | Frequency | 50/60Hz |
| | Overload Capability | ≤ 105%: continuously; > 105~≤ 110%: 60min; > 110~≤ 125%: 10 minute; > 125~≤ 150%: 1 minute; > 150%: 1 second |
| Display | | 5” color touch screen |

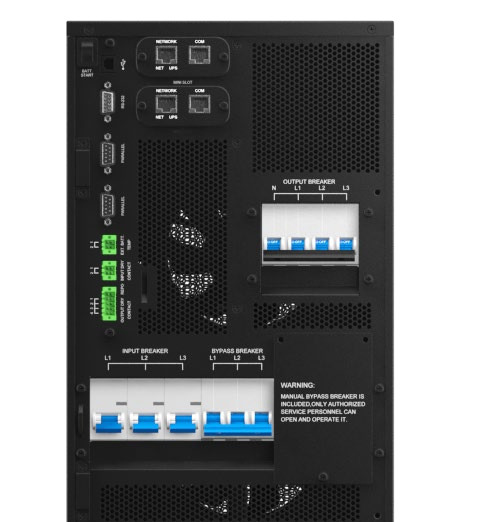

| Communication Interfaces | Standard | External battery temperature detection x1, Output dry contact x4, Input dry contact x2, Parallel port x2, USB Port x1, RS232 Port x1, REPO Port x1, Mini Slot x2 |
| Conformance | Safety | CE, RCM (IEC62040-1, IEC62040-2 Class C2) |
| Efficiency | AC-AC | > 96% (Peak efficiency) |
| | ECO Mode | 99% |
| Battery | Nominal Voltage | ±240Vdc (default, ±180Vdc~±276Vdc configurable) |
| | Charge Voltage | ±272Vdc (adjustable from 204V to 312V) |
| | Maximum Inbuilt Charger Current | 15A |
| | Discharge Time*** | 20 minutes 14 minutes 9.5 minutes |
| Environment | Operating Temperature | 0~40°C |
| | Relative Humidity | 0~95% (non-condensing) |
| | Audible Noise (at one meter) | < 50dB < 56dB < 56dB |
| | IP Protection | IP20 (Standard); IP42 (Optional for long backup model) |
| Others | Parallel Redundancy and Expansion | Up to 4 units |
| | Battery Start | Yes |
| Physical | Dimensions (W x D x H) | 240 x 630 x 650mm |
| | Weight | 44kg 50kg 50kg |
| Physical | Dimensions (W x D x H) | 470 x 780 x 1200mm |
| (HPH-B/B-N) | Weight (B: with batt.) | 334kg 340kg 340kg |
| | Weight (B-N: without batt.) | 94kg 100kg 100kg |
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.
FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
