Cotek 3000W Power Inverter Pure Sine Wave Inverter SP Series SP-3000

Name: Cotek 3000W Power Inverter Pure Sine Wave Inverter SP Series SP3000
Brand: cotek
Price: 1 USD

Buy cheap Cotek 3000W Power Inverter Pure Sine Wave Inverter SP Series SP-3000 product

Brand Name : cotek

Model Number : SP-3000

Place of Origin : China

MOQ : 10 Pcs

Payment Terms : T/T

Delivery Time : 15-30 days

Packaging Details : carton

MODEL : SP-3000-112, SP-3000-124, SP-3000-148, SP-3000-212, SP-3000-224, SP-3000-248

AC Output Voltage : 100/110/115/120 VAC; 200/220/230/240 VAC

Rated Power : 3000W(VA)

Frequency : 50/60 Hz ± 0.5% (Dip switch selectable)

DC Input Voltage : 12V; 24V; 48V

Efficiency : 90%; 91%; 92%; 90%; 93%; 94%

Operating Temperature : -20~40℃

Storage Temperature : -30 ℃~70 ℃

Dimension (WxHxD) : 255x158x442 mm

Weight (Net) : 8.2kg

Contact Now

SP-3000 Features

Pure sine wave output

Power ON / OFF remote control (Green Terminal)

Input & output fully isolation

Temperature & load controlled cooling fan

User friendly interface

Output frequency 50/60 Hz selectable by DIP switch

Output voltage DIP switch selectable

Power saving mode by variable resister

3-color LED status indicators

Input protection:Reverse Polarity (Fuse) / Under Voltage / Over Voltage

Output protection:Short Circuit / Overload / Over Temperature

E13 / UL / CE / FCC approved

Accessory:

Remote controller CR-8

Remote controller CR-16A

By-pass switch TR-40

Specification

MODEL	SP-3000-112, SP-3000-124, SP-3000-148, SP-3000-212, SP-3000-224, SP-3000-248
Main Features	◎ New generation pure sine wave inverter ◎ Higher efficiency, high power density ◎ Selectable output voltage and frequency ◎ Robust aluminum case
AC Output Voltage	100/110/115/120 VAC; 200/220/230/240 VAC
Rated Power	3000W (VA)
Surge Power	< 6000W (VA)
Output Waveform	Pure Sine Wave (100V series:THD<5%@Normal Load / 200V series:THD<3%@Normal Load)
Frequency	50/60 Hz ± 0.5% (Dip switch selectable)
DC Output Voltage	─
DC Output Voltage Range	─
DC Input Voltage	12V; 24V; 48V
DC Input Voltage Range	10.5~16.5VDC; 21~33VDC; 42~66VDC
Efficiency	90%; 91%; 92%; 90%; 93%; 94%
Operating Temperature	-20~40℃, Power De-rating from 40°C~60°C
Storage Temperature	-30 ℃~70 ℃
Safety	CE / FCC / UL (only for 112/124) / E13
Dimension (WxHxD)	255x158x442 mm
Weight (Net)	8.2kg
Socket Type	GE / AU / UK / Universal / France Connector / Hard Wire

Cotek 3000W Power Inverter Pure Sine Wave Inverter SP Series SP-3000

Product Tags:

SP series Power Inverter

Pure Sine Wave Power Inverter

3000W Power Inverter

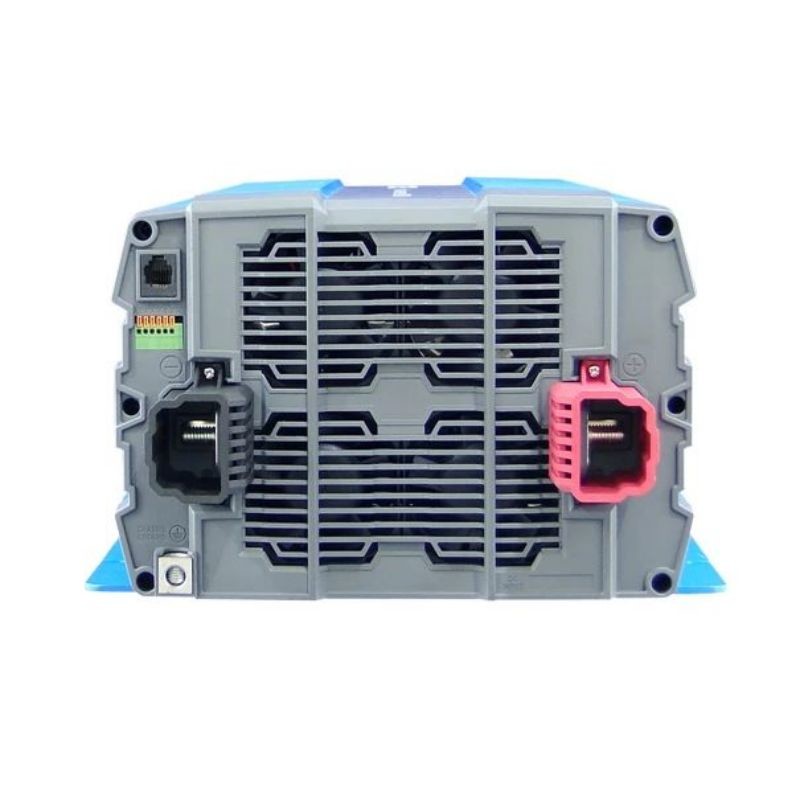

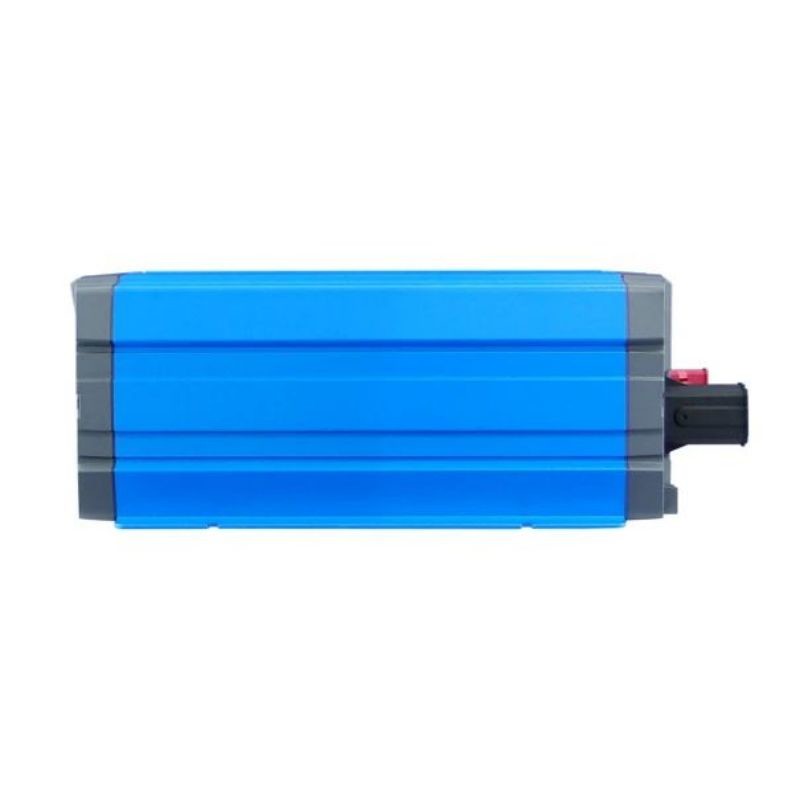

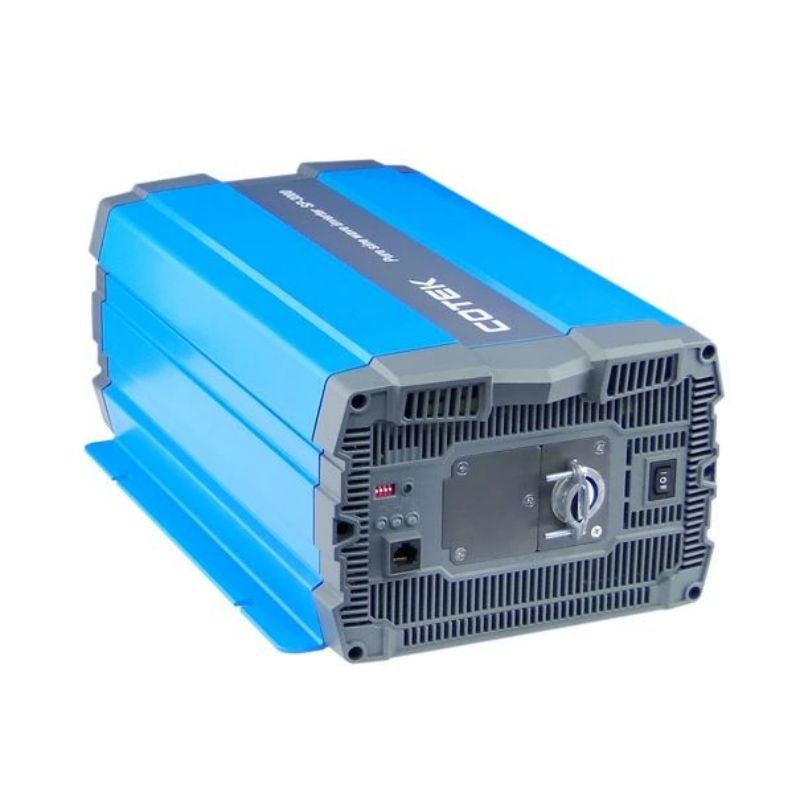

Cotek 3000W Power Inverter Pure Sine Wave Inverter SP Series SP-3000 Images
